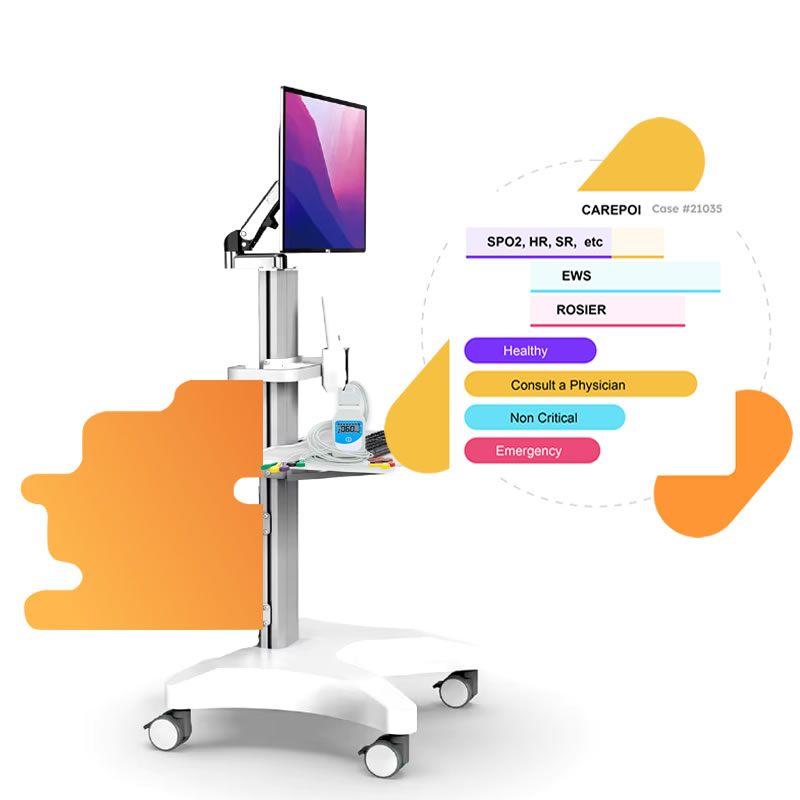

ERTRIAGE DH-600
AI-Powered Emergency Triage system
ERTRIAGE DH-600 is a next-generation triage system that empowers emergency clinicians with AI-driven decision support. Designed for rapid deployment in Emergency Departments (EDs), it integrates an AI core with a medical-grade touchscreen and seamless connectivity to BLE sensors and peripheral health systems.
Developed on a secure, Android-based architecture and equipped with embedded machine learning models, the system empowers clinicians to prioritize patients with unmatched speed, accuracy, and clinical context.
Key Capabilities
- Real-time triage decisions in under 180 seconds
- Guided history intake using structured clinical logic
- BLE connectivity with BP cuffs, SpO₂, ECG, thermometers
- Offline operation with on-device machine learning
- Secure cloud integration and model synchronization
AI Processing Core
- Processor: Octa-core, 4nm chipset with neural processing unit (26 TOPS)
- Memory: 8GB LPDDR5X RAM
- Storage: 256GB encrypted UFS 4.0
- Operating System: Hardened Android 13
- Security: Biometric access, secure enclave, encrypted bootloader
- Connectivity: Wi-Fi 6E, Bluetooth 5.3, optional 4G/5G
User Interface
- Display: 21.5″ IPS LCD, 1080p resolution, antimicrobial touch surface
- Touch: 10-point capacitive
- Mount: Adjustable arm for ergonomic access
- Input: USB-C with HDMI and HID overlay
Clinical Workflow
Intake & History
Structured symptom-based questioning aligned with triage protocols.
Vitals & Assessment
Connected BLE devices provide live data import; manual entry and override supported.
AI Output as advice
- Severity level (ESI 1–5)
- Priority
- Department recommendation
- Urgency flag and clinical reasoning
Documentation
Data is exportable to hospital systems via REST API, HL7, or FHIR; local PDF print supported.
Device Integration
| Device | Protocol |
|---|---|
| SpO₂ Monitor | BLE |
| Blood Pressure Cuff | BLE |
| Thermometer | Contactless / BLE |
| ECG Unit | USB |
| Barcode Scanner | BLE |
Deployment Modes
- Local: Fully offline with on-device ML engine
- Cloud: Scalable deployment with centralized model updates
- Hybrid: Automatically switches between cloud/local based on connectivity
Mobility & Power
- 5-wheel mobile base with locking casters
- Dual hot-swappable batteries and backup UPS
- Ergonomic design with adjustable height and anti-fatigue form
Compliance
- IEC 60601-1 Medical Electrical Safety
- ISO 13485 Manufacturing Quality
- HIPAA / GDPR / ISO 27001 Data Protection
- Full audit trail for AI outputs and overrides
